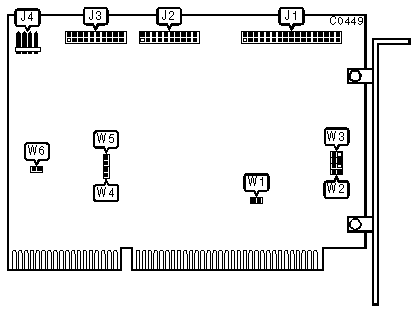

DATA TECHNOLOGY CORPORATION DTC5180C REV. G
|
| Data bus: | 16-bit, ISA |
| Size: | Half-length, full-height card |
| Hard drive supported: | Two MFM ST506/412 drives |
| Floppy drives supported: | None |
| CONNECTIONS |
| Function | Location |
| 34-pin control cable connector - hard drive | J1 |
| 20-pin data cable connector-drive 0 | J2 |
| 20-pin data cable connector-drive 1 | J3 |
| 4-pin connector-Drive active LED | J4 |
| USER CONFIGURABLE SETTINGS |
| Function | Location | Setting |
| » | Floppy drive change not driven | W1 | open |
| | Floppy drive change signal driven low | W1 | closed |
| » | Hard drive port address is 3F6, 3F7, 1F0-1F7h | W4 & W5 | open |
| | Hard drive port address is 376, 377, 170-177h | W4 & W5 | closed |
| HARDWARE/FIRMWARE DRIVE SELECT MODE ENABLE |
| Function | W2 & W3/jumper 1 | W2 & W3/jumper 2 | W6 |
| Hardware mode | closed | open | closed |
| Firmware mode | open | closed | open |
